Details

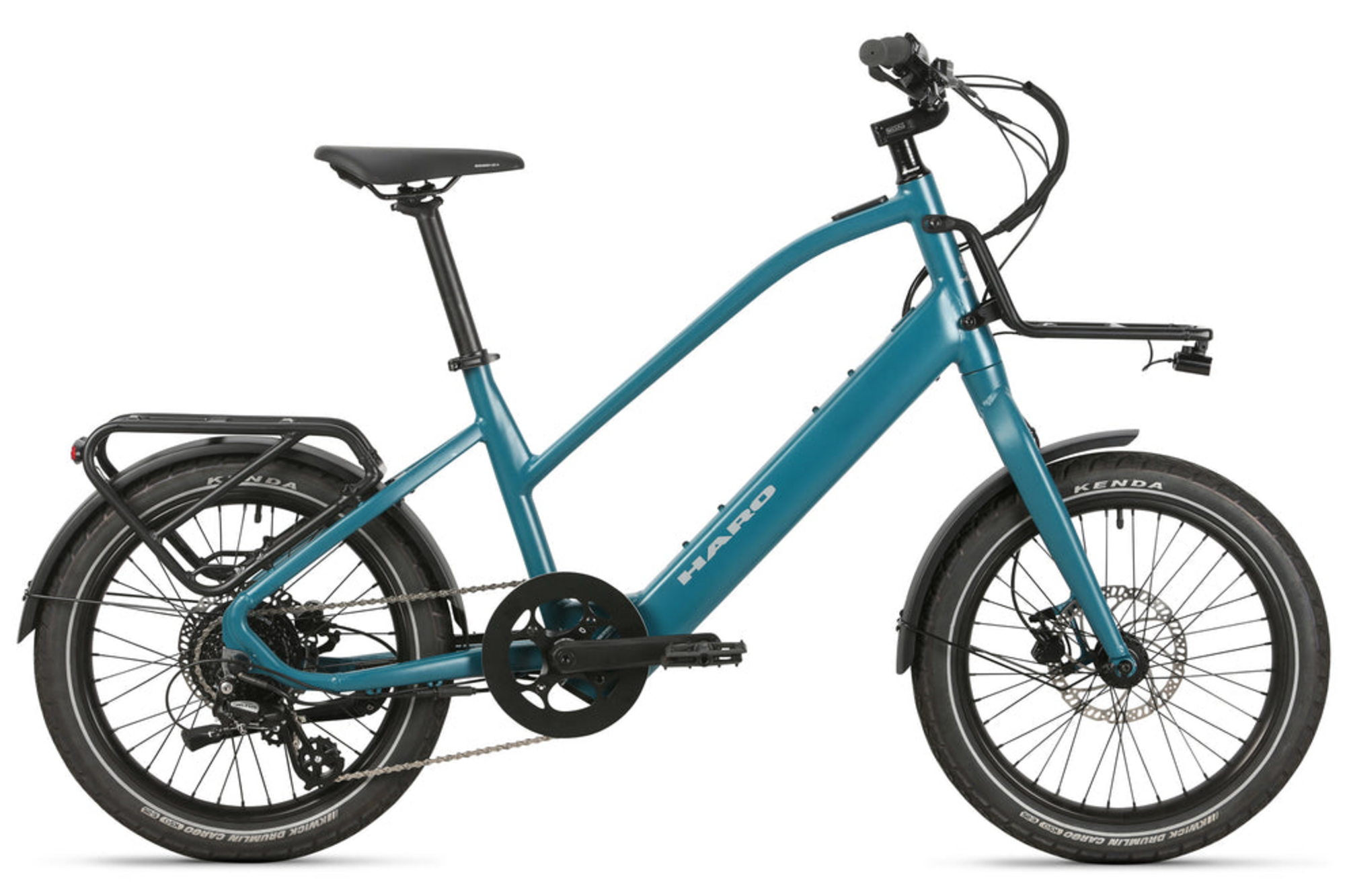

Lightweight, nimble and born for modern life. The Skwad LT features a minimalist, compact frame design that makes it the perfect E-bike for travel. Pedal-assist with a 250 Watt motor and a slim, in-tube UL Certified battery for a low center of gravity and improved stability. 20-inch wheels allow it to easily tuck into smaller spaces when it's time to load it up or park it. The Rider's App is your personal connection to the bike, with a wide range of features including a navigation system that coordinates battery capacity in regards to routes, as well as bike status, weather alerts, diagnostics and more. Outfit your Skwad LT with an assortment of baskets, crates and bags using the built-in, compatible AtranVeloSystem (AVS) mounts. Good to go--everywhere.
FEATURES:
- 250 W rear hub motor with dual-sided torque sensor.
- 20 MPH top assisted speed
- 28 Mile Range
- Slim In-tube Battery. UL Certified
- Shimano Altus 8-speed
- Selle Royal Essenza saddle
- Dual-piston hydraulic brakes with motor shut-off
- Front Light: Lezyne Micro Drive 500, Rear Light: Lezyne super bright alert
- AtranVeloSystem (AVS) front and rear racks
- Haro Baseline Stem
- Haro 2-PC 3" MX Bar
- Bluetooth App with Navigation
- Weight: 50 lbs
- Ebike classification: Class 1, 250W/20MPH
A. Seat Tube (C-T) | 360mm |
---|---|
B. Top Tube (Effective) | 618mm |
C. Head Angle | 70° |
D. Seat Angle | 72.3° |
E. Chainstay | 400mm |
F. Wheelbase | 1090mm |
G. Head Tube Length | 250mm |
H. Reach | 425mm |
Fork Height (A-C) | 410mm |
Fork Offset | 40mm |
Specs
Pedals | Nylon 9/16" |
---|---|
Motor | 250W hub motor with dual-sided torque sensor. Class 1, 250W/20MPH |
Battery | 36V; 300w; In-tube battery. UL Certified |
Fork | 6061-T6 heat-treated aluminum |
Hubs | Alloy sealed bearing with 3/8" axle. Female bolts |
Stem | Haro Baseline. 48mm reach |
Chain | KMC X8 |
Frame | Haro Skwad LT 6061-T6 heat-treated aluminum |
Tires | Kenda Drumlin Caro 20"x2.4" |
Brakes | Tektro two-piston with motor cut-off |
Saddle | Selle Royal Essenza |
Wheels | 20" Alloy 36-hole. Double-wall. Disc specific |
Headset | 1-1/8" integrated |
Crankset | Forged aluminum 170mm. 48T alloy chainring with guard |
Seatpost | 31.6mm micro-adjust aluminum |
Shifters | Shimano Altus 8-speed with window |
Handlebars | Haro 2-pc. 3" Rise. 760mm wide. 2° up sweep |
Tape/Grips | Lock-on Ergo Kraton Rubber |
Brake Levers | Tektro with cut-off |
Bottom Bracket | Euro |
Rear Derailleur | Shimano Altus 8-speed |
Accessories & Extras | Phone App ready For E System, AtranVeloSystem (AVS) front and rear racks, Front Light: Lezyne Micro Drive 500, Rear Light: Lezyne super bright alert. |
Cassette/Freewheel | Shimano 8-speed Cassette 12-28T |
* Subject to change without notice.
Part Numbers
Option | MPN |
---|---|
Atlantic Blue / One Size / 20-inch | 34777 |
Matte Charcoal / One Size / 20-inch | 34776 |
