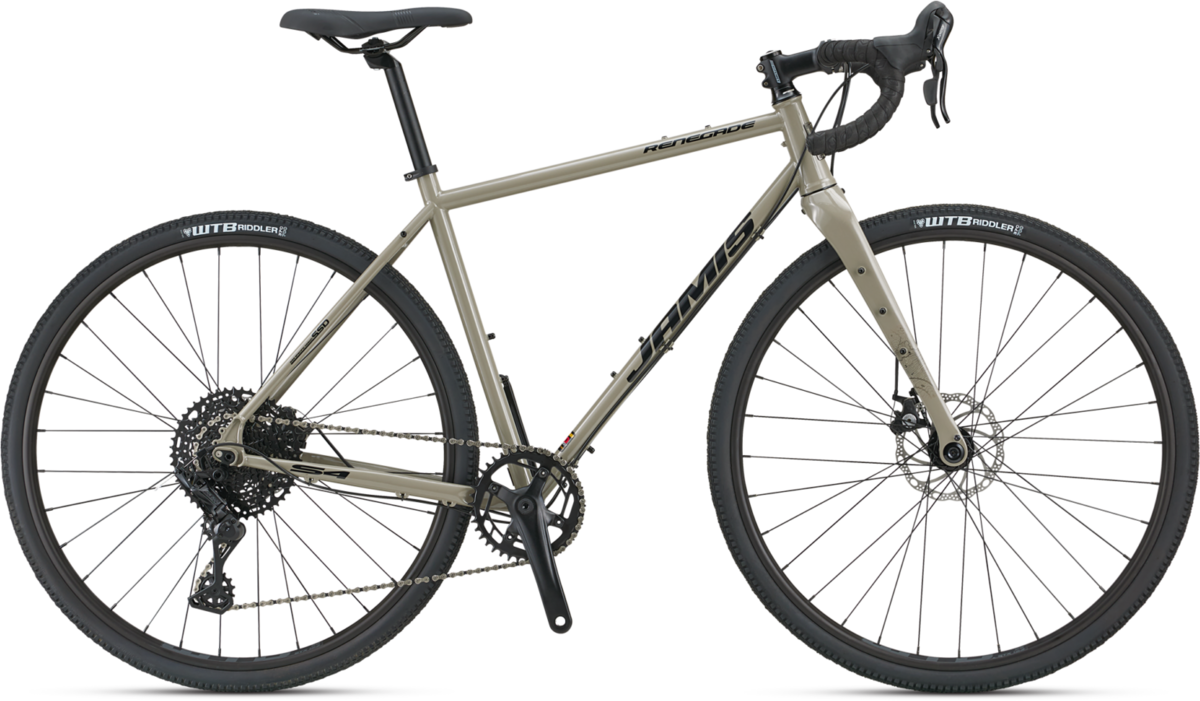

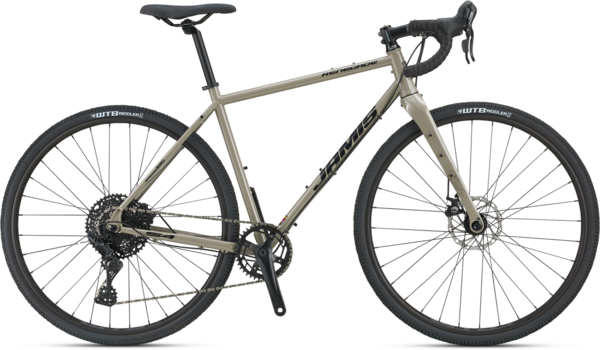

Jamis Renegade S4 LTD
$1,399.95
Details
Jamis Size Specific Design frame geometry, SST Reynolds 520 double-butted chromoly
Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System)
WTB STX i23 TCS 2.0 (UST Tubeless Compliant System) disc rims
WTB Riddler Comp 700CX37C tires
microSHIFT AdventX 10-Speed Group
Tektro Lyra mechanical cable actuated disc brakes
FSA sealed cartridge bottom bracket
Specs
| Frame | UPDATED Jamis Size Specific Design frame geometry, SST Reynolds 520 double-butted chromoly main tubes, tapered head tube for tapered fork, threaded BB shell, 12mm Thru- axle, flat mount chain stay disc brake mounts, down tube mounted full cable housing, internal dropper post ready, 3 waterbottle mounts, TT mounts, rack and fender eyelets. |
|---|---|
| Fork | Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System) with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and 3 water bottle eyelet |
| Headset | FSA No.57E/42/CUP Internal headset with lower cup, 1.5 – 1 1/8 |
| Rims | WTB ST i23 TCS 2.0 disc rims |
| Hubs | 6-bolt alloy hubs, 14g stainless steel spokes and front 12mm/rear 12×142 thru-axle with Switch Lever |
| Tires | WTB Riddler, 700 x 37c, 30TPI with protection belt |
| Crankset | ProWheel 1x, 40T, 165mm (48), 170mm (51/54/56) 175mm (58/61) |
| Bottom Bracket | FSA sealed cartridge, 68 x 110.5mm |
| Chain | KMC X10 |
| Rear Cog(s) | MicroShift CS-H104, 10-speed, 11-48 |
| Handlebars | Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12° flare, 31.8 x 420 (48-51) 440mm (54-56), 460mm (56-61) |
| Stem | Ritchey 4-AXIS Stem 6°x60mm (48-51), 70mm (54-56), 80mm (58/61) |
| Brakes | Tektro Lyra MD-C510 mechanical cable actuated disc flat mount brake with 160mm wave rotors and Microshift AdventX levers |
| Saddle | Selle Royal SRX Gravel Saddle with CROMO rails |
| Seat Post | Jamis Road, micro-adjust, 27.2 x 350mm, 0mm offset with aluminum 1-bolt seat post clamp with cromo seat pin |
* Subject to change without notice.
