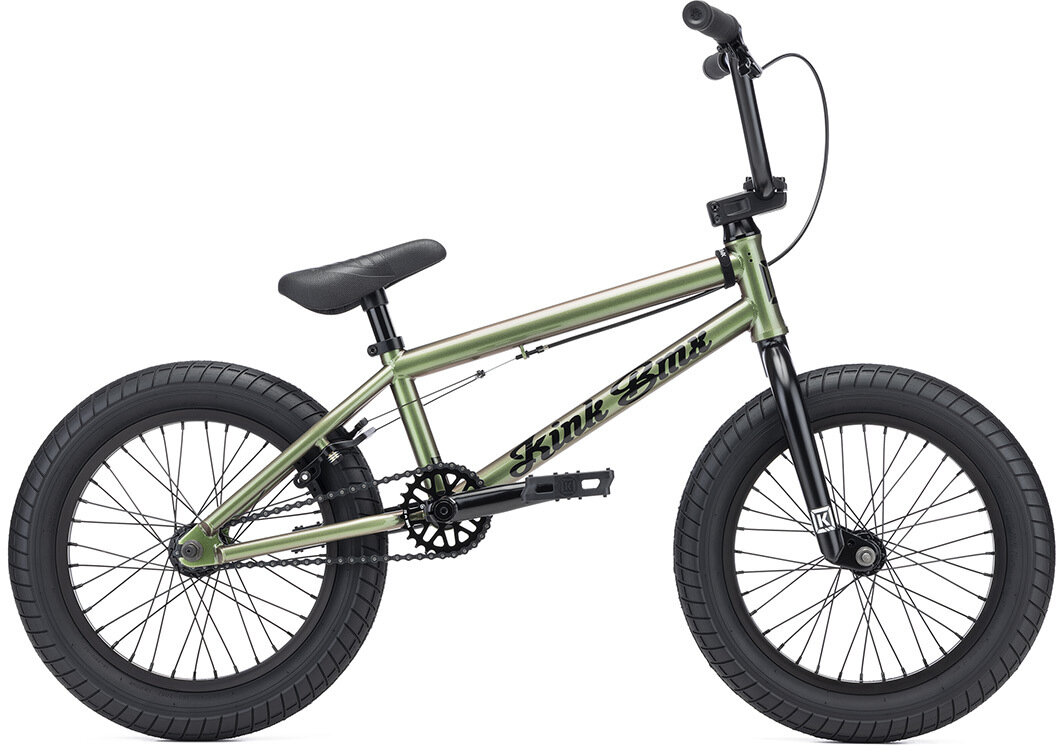

Kink Carve
$399.95
Details
The Kink Carve 16" ensures riders of every age can not only find a bike that fits them but can also hold up to some real BMX riding. Kids are getting serious about BMX at younger and younger ages, and we love it. Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn't ready for the bump up to a larger 18" bike yet. Made for all types of riding, the Kink Carve comes in a really cool gloss Patina Green colorway.
| Toptube Length | 16.5" |
|---|---|
| Chainstay Length | 11.25" |
| Headtube Angle | 74.5° |
| Seattube Angle | 71° |
| Standover Height | 6.75" |
| Bottom Bracket Height | 9.75" |
| Fork Offset | 32mm |
| Rider Height (in) | Rider Height (cm) | Bike Size | Top Tube Length |
|---|---|---|---|
| 2' 4" - 3' 0" | 71 - 91 cm | 12" | 12" - 12.5" |
| 2' 8" - 3' 6" | 81 - 106 cm | 14" | 14" - 14.5" |
| 3' 2" - 4' 0" | 96 - 122 cm | 16" | 16" - 16.5" |
| 4' 0" - 4' 10" | 122 - 147 cm | 18" | 18" - 18.5" |
| 4' 10" - 5' 3" | 147 - 157 cm | 20" | 19.75" - 20.25" |
| 5' 3" - 5' 6" | 157 - 168 cm | 20" | 20" - 20.5" |
| 5' 6" - 5' 9" | 168 - 175 cm | 20" | 20.25" - 20.75" |
| 5' 9" - 6' 0" | 175 - 183 cm | 20" | 20.5" - 21" |
| 6' 0" - 6' 3"+ | 183 - 190 cm + | 20" | 20.75" - 21.5" |
Specs
| Frame | Kink Carve 100% Hi-Ten Steel |
|---|---|
| Fork | Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs |
| Rims | Mission X7 |
| Hubs |
Front: Mission Covert Unsealed 3/8" Axle Rear: Mission Function Semi-Sealed Cassette 14mm |
| Tires | Mission Tracker 16x2.4" |
| Bottom Bracket | Sealed Mid 19mm |
| Crankset | Mission Triumph 3pc Tubular Chromoly 140mm – 8 Spline |
| Chainrings | Mission Rank 25T |
| Cassette/Freewheel | 9T |
| Chain | Mission 410 |
| Brakes | Mission Cease V2 |
| Brake Levers | Mission Mini |
| Handlebars | Kink T700 7" 100% Hi-Ten Steel |
| Tape/Grips | Mission Helix Mini |
| Stem | Mission Topload 40mm |
| Headset | Mission Sealed Integrated (41.8 x 45) |
| Seatpost | Mission Combo Steel Post |
| Saddle | Mission Cypress Mini Combo |
| Pedals | Kink Hemlock |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Patina Green / 16-inch | 680031744199 | BK408WHT23 |
