Kink Cloud
Details
The Kink Cloud is Kink Pro team rider Travis Hughes' signature bike. If you've seen Travis ride, you know there is just about nothing he can't do on a bike, and the Cloud is based on his personal geometry preferences. Component wise, the Kink Cloud has got you covered with the included four plastic pegs and rear freecoaster wheel. The stealthy Matte Iridescent Black colorway really sets this bike apart without being flashy, and graphics inspired by Travis's design ideas really finish off the look of this bike.
In addition to the full 100% 4130 chromoly frame and fork, the Cloud features an amazing list of components. This model comes with aftermarket Kink Rex 9.5" 13-butted 100% 4130 chromoly bars, Kink Ericsson Stealth seat, and Kink 2.4" Sever tires front and rear. The integrated seat clamp, removable brake design, and Mission Pace freecoaster rear wheel solidify the aftermarket look and feel to this bike. To top it all off, the Cloud of course comes standard with four Mission Targa plastic pegs.
| Toptube Length | 21" |
|---|---|
| Chainstay Length | 13.25" |
| Headtube Angle | 75.5° |
| Seattube Angle | 71° |
| Standover Height | 8.75" |
| Bottom Bracket Height | 11.65" |
| Fork Offset | 26mm |
| Rider Height (in) | Rider Height (cm) | Bike Size | Top Tube Length |
|---|---|---|---|
| 2' 4" - 3' 0" | 71 - 91 cm | 12" | 12" - 12.5" |
| 2' 8" - 3' 6" | 81 - 106 cm | 14" | 14" - 14.5" |
| 3' 2" - 4' 0" | 96 - 122 cm | 16" | 16" - 16.5" |
| 4' 0" - 4' 10" | 122 - 147 cm | 18" | 18" - 18.5" |
| 4' 10" - 5' 3" | 147 - 157 cm | 20" | 19.75" - 20.25" |
| 5' 3" - 5' 6" | 157 - 168 cm | 20" | 20" - 20.5" |
| 5' 6" - 5' 9" | 168 - 175 cm | 20" | 20.25" - 20.75" |
| 5' 9" - 6' 0" | 175 - 183 cm | 20" | 20.5" - 21" |
| 6' 0" - 6' 3"+ | 183 - 190 cm + | 20" | 20.75" - 21.5" |
Specs
| Frame | Kink Cloud Stock 100% 4130 Chromoly |
|---|---|
| Fork | Kink Trident Fork 100% 4130 Chromoly 1pc Steerer Tube Tapered Fork Legs |
| Rims | Mission Mylar |
| Hubs |
Front: Mission Bond Sealed Bolt-In Rear: Mission Pace Sealed Freecoaster 14mm |
| Tires | Kink Sever 2.4" |
| Bottom Bracket | Sealed Mid 19mm |
| Crankset | Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline |
| Chainrings | Kink Imprint 25T CNC 7075-T6 |
| Cassette/Freewheel | 9T |
| Chain | Mission 510H |
| Brakes | Mission Cease V2 (Removable Mounts) |
| Brake Levers | Mission Token |
| Handlebars | Kink Rex Bars 9.5" 100% 4130 Chromoly 13-Butted TruTherm |

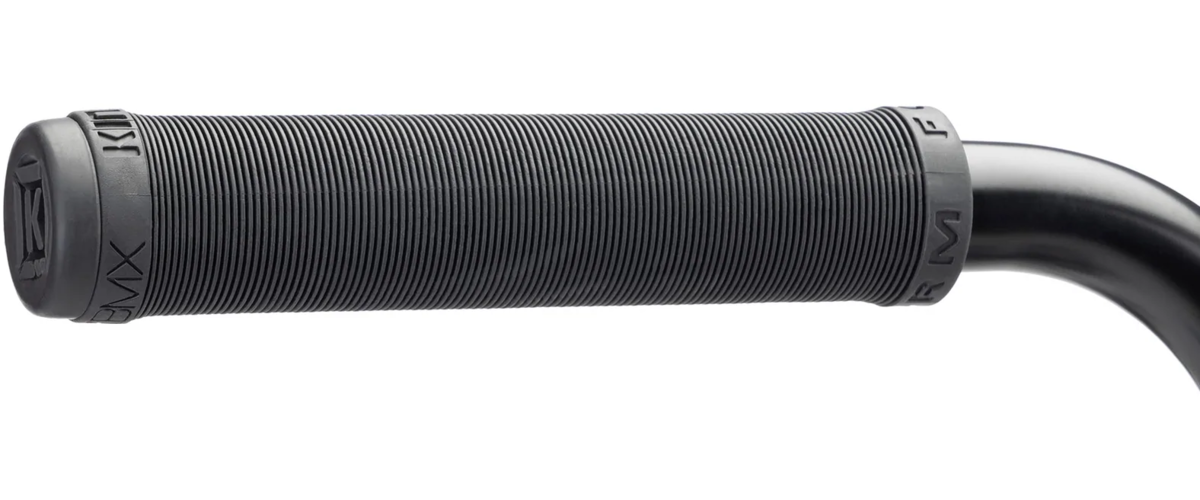

| Tape/Grips | Kink Form, Thrust Barends |
| Stem | Kink Bold HRD 50mm |
| Headset | Mission Sealed Integrated (41.8 x 45) |
| Seatpost | Mission Aluminum Stealth |
| Saddle | Kink Ericsson Stealth |
| Pedals | Kink Hemlock |
| Accessories & Extras | Pegs: 4 x Mission Nylon Pegs |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Matte Iridescent Black / 21-inch | 680031744373 | BK480BLK23 |
